SJL Cable Pulling Pulley Ground Block To Eliminate Induced Static Electricity

SJL Cable Pulling Pulley Ground Block To Eliminate Induced Static Electricity
SJL Cable Pulling Pulley Ground Block To Eliminate Induced Static Electricity SJL Cable Pulling Pulley Ground Block To Eliminate Induced Static Electricity

Large Image :  SJL Cable Pulling Pulley Ground Block To Eliminate Induced Static Electricity

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SJL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 7-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Detailed Product Description
Name: Grounding Block Cable: Conductor, Earthwire, Steel Wire
Weight: 5.7kg Wheel: Cast Steel Or Aluminum Steel
Model: SJL Max Cable Dia: 48mm
High Light:

overhead line stringing block

,

transmission line stringing block

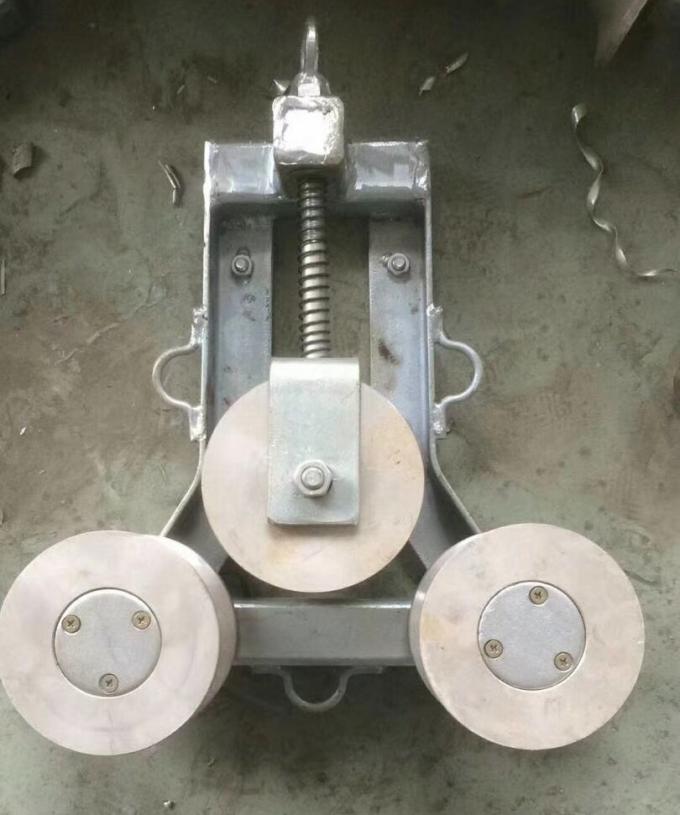

SJL Model Grounding Pulley Block To Eliminate Induced Static Electricity



Grounding Block Data

SJL Model Grounding Pulley Block To Eliminate Induced Static Electricity:

Model SJL, material of sheave can be cast aluminum and cast steel, applicable for conductor and steel wire rope, earth wire. Root diameter of sheave is 46mm, 56mm, and 50mm. suit to max cable diameter is 38mm, 48mm.

Item number Model Root diameter of sheave Max. cable diameter Material of sheave Applicable cable Weight (kg)
12101 SJL-100 Φ46 Φ38 Cast aluminium Conductor 3.5
12101A SJL48-100 Φ56 Φ48   4.5
12102 SJT-100 Φ50 Φ38 Cast steel Steel wire rope,earth wire 5.7

Characteristics:

SJL Model Grounding Pulley Block To Eliminate Induced Static Electricity

1. To eliminate include electricity in conductor and grounding wire when releasing wires.

2. Mounted on the outlet side of tensioners or the inlet side of puller and drawn by two stay wires.

3. Tri-sheave mechanism compacted automatically.

4. Maximum allowable current is 100A, time electrified is 0.1 second.

5. It is recommended that section of mating conductor is 25 mm2

6. Grounding wire and grounding pile provide additionally.
