Steel Rotating Basic Construction Tools Electric Cable Connector Swivel

Steel Rotating Basic Construction Tools Electric Cable Connector Swivel
Steel Rotating Basic Construction Tools Electric Cable Connector Swivel Steel Rotating Basic Construction Tools Electric Cable Connector Swivel

Large Image :  Steel Rotating Basic Construction Tools Electric Cable Connector Swivel

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SLU
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 pcs / month
Detailed Product Description
Model: SLU-10 Type: Fixed Joint
Weight: 0.5kg Load: 1T
Material: Alloy Steel Name: Anti Bend Connector
High Light:

cable pulling tools

,

transmission tools and equipment

Steel Rotating Electric Cable Connector Swivel,Anti-bending Connector Joint



Anti Bend Connector Aplication:

Steel Rotating Electric Cable Connector Swivel,Anti-bending Connector Joint
The pilot wire connectors are specially designed and made to connect the pilot wire rope, and pulling rope to pass over the conductor pulleys, bull wheels of hydraulic puller or puller-tensioner. It is processed from high strength forged steel, and galvanised. The special profile minimizes the overload on the rope spliced eyes during the passage.

Technical Data:

Steel Rotating Electric Cable Connector Swivel,Anti-bending Connector Joint

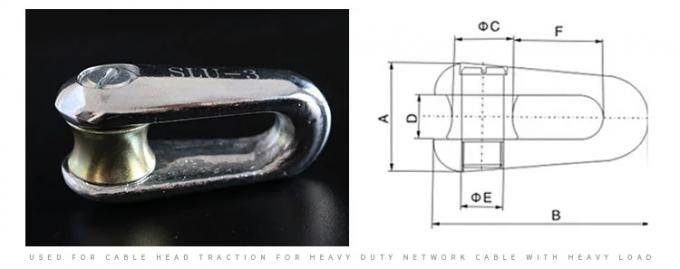

Model Main size(mm) Rated load(KN) Weight(kg)
A B C d D E
SLU-1 36 68 18 10 14 29 10 0.2
SLU-3 37 76 20 12 17 31 30 0.22
SLU-5 50 96 23 18 19 42 50 0.6
SLU-8 56 110 28 20 22 50 80 0.8
SLU-10 59 126 30 22 26 54 100 1.2
SLU-13 61 134 32 24 27 56 130 1.3
SLU-15 63 138 37 27 28 58 150 1.4
SLU-25 80 178 44 30 35 72 250 3.0
SLU-28 80 178 44 30 35 72 280 3.0
SLU-32 85 186 42 30 38 80 320 3.9

Steel Rotating Basic Construction Tools Electric Cable Connector Swivel 0

Our U-shape bend resistance connector is made of the galvanized steel with high tensile strength. It is specially designed to connect the pilot rope or pulling rope, which can pass through the puller or puller-tensioner bull wheels. Moreover, the unique profile allows this product to minimize the overload on the spliced eyes of the rope during this passage.



Anti-bending Connector Joint:

*Suitable for the connection of towing operation with no twisting wire rope.
*Small volume,light weight,can smoothly through the corners,pulley,tension machine,traction machine.

*Application:Anti- bends Connector is suitable to traction of connecting anti-twisting wire rope.

*Features:High strength, light weight, and good looking.

It can smoothly go through the machine traction pulley and the tension machine.

Steel Rotating Electric Cable Connector Swivel,Anti-bending Connector Joint

Steel Rotating Basic Construction Tools Electric Cable Connector Swivel 1
