Hydraulic Crimping Tool Double Acting 100 Ton Motorized Hydraulic Compressor

Hydraulic Crimping Tool Double Acting 100 Ton Motorized Hydraulic Compressor
Hydraulic Crimping Tool Double Acting 100 Ton Motorized Hydraulic Compressor Hydraulic Crimping Tool Double Acting 100 Ton Motorized Hydraulic Compressor Hydraulic Crimping Tool Double Acting 100 Ton Motorized Hydraulic Compressor

Large Image :  Hydraulic Crimping Tool Double Acting 100 Ton Motorized Hydraulic Compressor

Product Details:
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: CO-100S
Payment & Shipping Terms:
Minimum Order Quantity: 2sets
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 5-8work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/month
Detailed Product Description
Model: CO-100S Name: Hydraulic Compressor
Type: Double Acting Item: Hydraulic Crimping Tool
Ton: 100T Crimping: Hexagon
High Light:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

Double-Acting 100 Ton Motorized Hydraulic Compressor Hydraulic Crimping Tool



Applicable to inside and outside project of transmission and distribution room, such as professional use for all kinds of connection hardware / overhead cable,10KV500KV high voltage cable casing, clamp bare terminal, six angle type die casting, tight and not easy to fall off, good electrical conductivity;

Continue the development of T64 titanium alloy materials, in order to reduce weight construction



1.Compression mould can be replaced, quick and safe operation;

2.A separate structure, light weight, convenient operation;

3.Used for crimp of a variety of copper, aluminum wire connection, terminal and cable;



Technical Data

Product Name CO-100S double-acting heavy-duty hand hydraulic crimping tool
Output 100T
Application Hydraulic Powered Pump Crimping Head
Stopcock stoke  24mm
Standard Dies 1 sets
Crimping Profile Hexagon
Double Acting An external hydraulic pump is required
Weight 33 kgs

CO-100S is a double-acting heavy-duty hydraulic tool, designed with detachable cap, two carrying handles, two quick couplers. After properly connected with an double-acting hydraulic pump (electric or gasoline type), CO-100S is capable of crimping Cu or Al Cable lugs, connectors onto cable up to Dia.equipped.

1) Remote control style for easy carrying to working place.
2) With quick coupler , these crimping tools can be easily connected with external pump.
3) Double acting design for quick ram retraction retract ram by hydraulic power is much quicker than spring or load.
4) Detachable die cap for easy dies installation and removal.
5) Wood carton or metal case package for well tool protection during delivery.

Hydraulic Crimping Tool Double Acting 100 Ton Motorized Hydraulic Compressor 0   Hydraulic Crimping Tool Double Acting 100 Ton Motorized Hydraulic Compressor 1

Hydraulic Crimping Tool Double Acting 100 Ton Motorized Hydraulic Compressor 2  Hydraulic Crimping Tool Double Acting 100 Ton Motorized Hydraulic Compressor 3

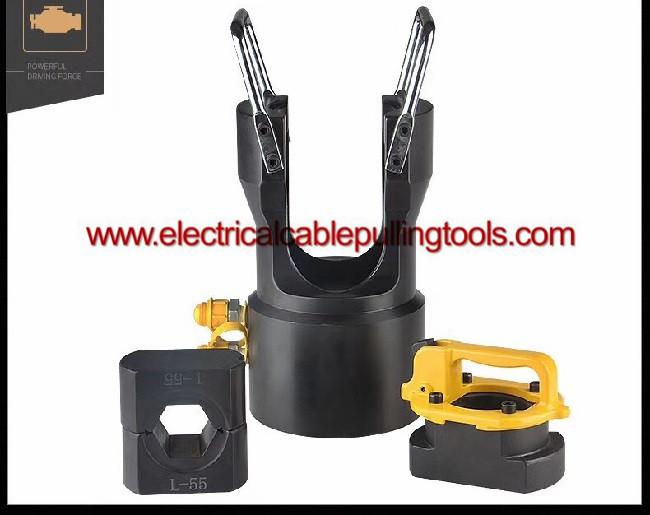

1)Compound hydraulic cylinder

Removes the problem of low fatigue reset spring sex that can shorten the piston reset time.

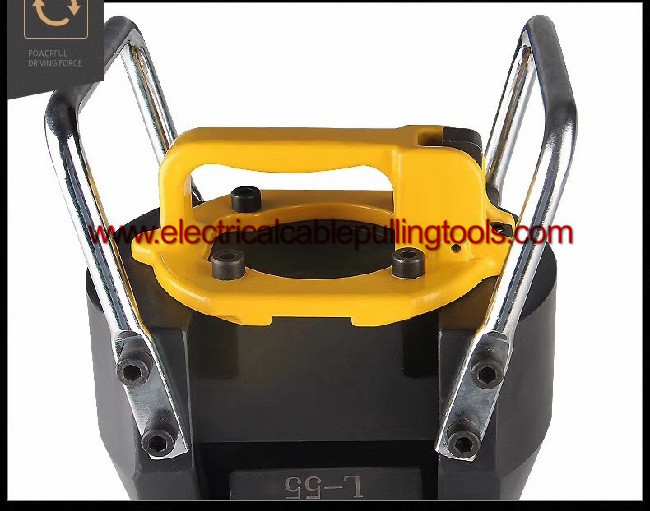

2)Rotary mould cover

Rotary mould cover can be opened and closed fast, make it easier for operating location, easy to design easy to repair, must match the double lift pump operation.

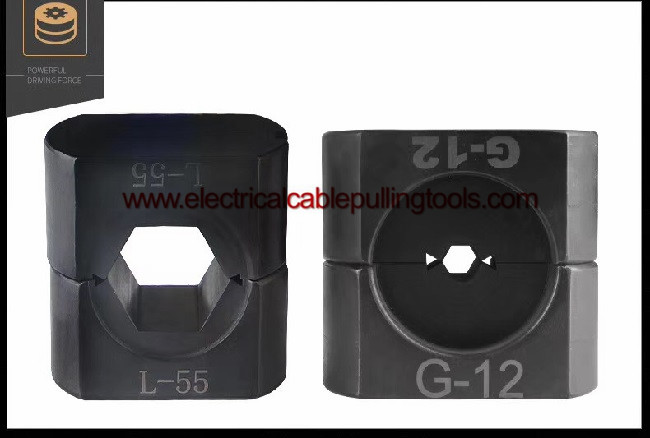

3)  Mould show

Aluminum mold (the letter L indicates that the aluminum film) steel (letter G indicates that the steel mould)

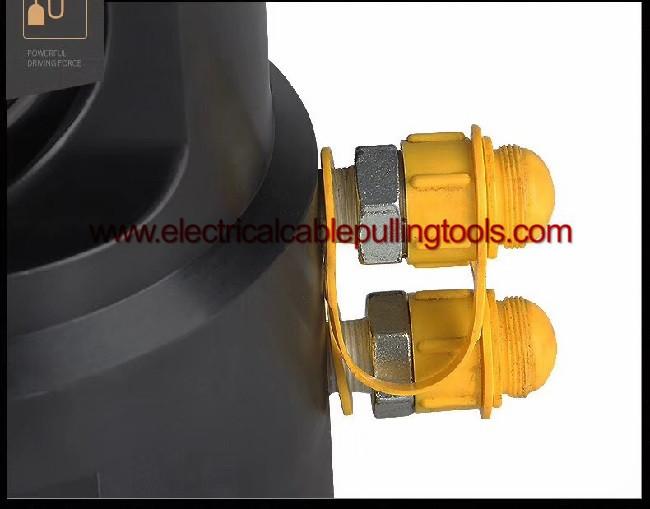

4)  Double circuit, oil return more quickly

Joint on female connector and crimping machine hydraulic pump, need not when can be plastic dustproof set screw on the male connector, lest dirt to enter.

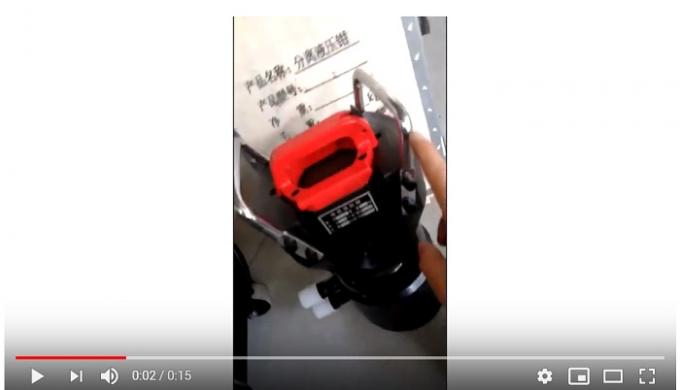

Please click below picture to find the video about application method

Hydraulic Crimping Tool Double Acting 100 Ton Motorized Hydraulic Compressor 4
