Transmission Line Steel Cable Pulling Pulley Stringing Conductor Pulleys

Transmission Line Steel Cable Pulling Pulley Stringing Conductor Pulleys
Transmission Line Steel Cable Pulling Pulley Stringing Conductor Pulleys

Large Image :  Transmission Line Steel Cable Pulling Pulley Stringing Conductor Pulleys

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHZ1
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: get the latest
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100pcs/day
Detailed Product Description
Material: Steel Sheave Name: High Speed Turning Block
Rated Load: 50kn Model: THZ1-5
Sheave Width: 75mm Weight: 22kg
High Light:

overhead line stringing block

,

transmission line stringing block

Transmission Line Steel Sheave Stringing Pulley Conductor Pulleys Stringing





High Speed Stringing Turning Block Products

Item number

Model

(KN)

Rated Load

 (MM)

Sheave Diameter



Sheave

width

 (KG)

Weight



Remark

12141 THZ1-5 50 Φ308 75 22



Steel Sheave

12141A THZ1-8 80 Φ308 110 30
12142 THZ1-16 160 Φ600 92 115
12143 THZ1-30 300 Φ916 110/125 200



Quick Information:

1. Donghuan Brand

2. Transmission Line accessories and tools

3. High speed turing block, special stringing block

4. rated load is 50kn

5. 308 mm sheave diameter and 75mm width

6. Steel sheave

7. Galvanzied frame

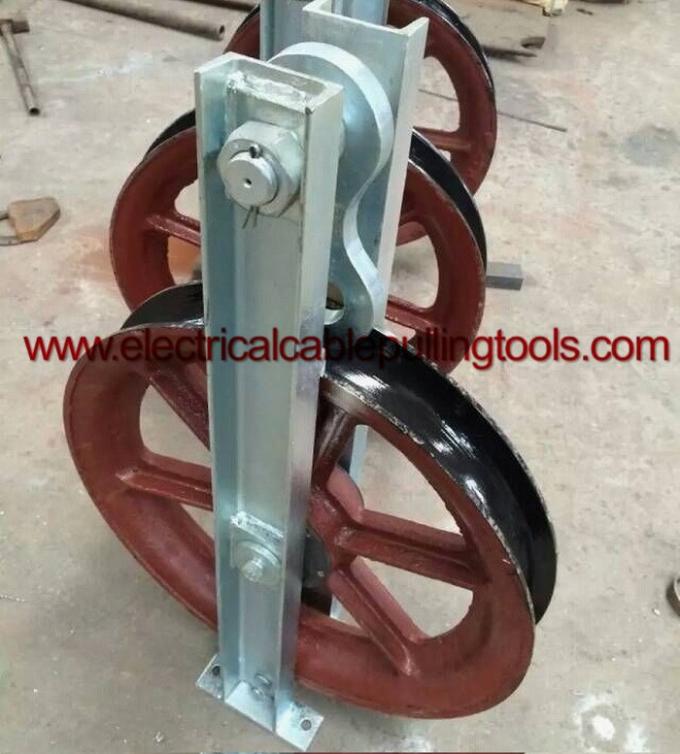

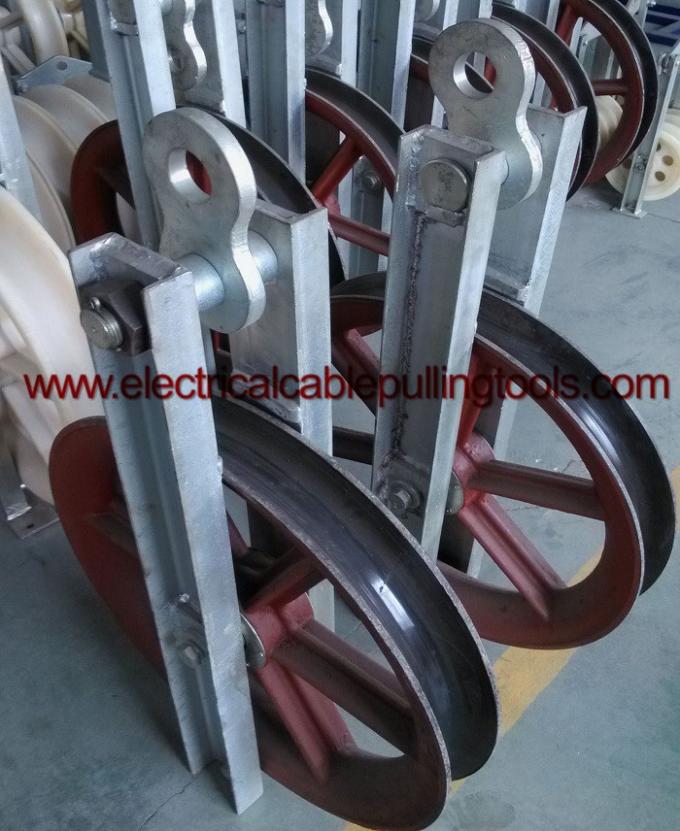

Steel Sheave Stringing Pulley Conductor Pulleys Stringing

Configuration:Apply to steel wire rope traction and turning. It can pass through steel wire rope connector;The maximum allowable speed of hauling rope is 80m/min.

Transmission Line Steel Cable Pulling Pulley Stringing Conductor Pulleys 0Transmission Line Steel Cable Pulling Pulley Stringing Conductor Pulleys 1
