Screw Type Cable Laying Equipment , Wire Payoff Stand With 1 Ton 3 Ton 5 Ton Rated Load

Screw Type Cable Laying Equipment , Wire Payoff Stand With 1 Ton 3 Ton 5 Ton Rated Load
Screw Type Cable Laying Equipment , Wire Payoff Stand With 1 Ton 3 Ton 5 Ton Rated Load Screw Type Cable Laying Equipment , Wire Payoff Stand With 1 Ton 3 Ton 5 Ton Rated Load

Large Image :  Screw Type Cable Laying Equipment , Wire Payoff Stand With 1 Ton 3 Ton 5 Ton Rated Load

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: SIL-5
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: Wooden case
Delivery Time: 3 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500sets/days
Detailed Product Description
Model: SIL-5 Name: Cable Drum Stands
Rated Load: 5T Adjustable Height: 900-1300
Weight: 27kg Type: Manually Releasing Wire
High Light:

electrical wire pulling tools

,

stringing pulling tools

Cable Laying Equipment Screw Type Wire Pay Off Stand with 1Ton 3 Ton 5 Ton Rated Load





There are other types cable drum lifting stand/ jacks, hydraulic type cable reel stands, and detachable type cable reel stand. also the hydraulic column type cable reel stand.

Customized Simple Reel Payout Stand 1-5 Ton Mechanical Cable with Screw Mandrel

Item number

Model

(KN)Load

Height Adjustment Range

(KG)

Weight

15191 SIL-1 10 450-650 22
15192 SIL-3 30 600-900 24
15193 SIL-5 50 900-1300 27
15201 SIK-3 30 600-900 30
15202 SIK-5 50 900-1300 44
15211 SIK-3A 30 600-900 28
15212 SIL-5A 50 900-1300 35

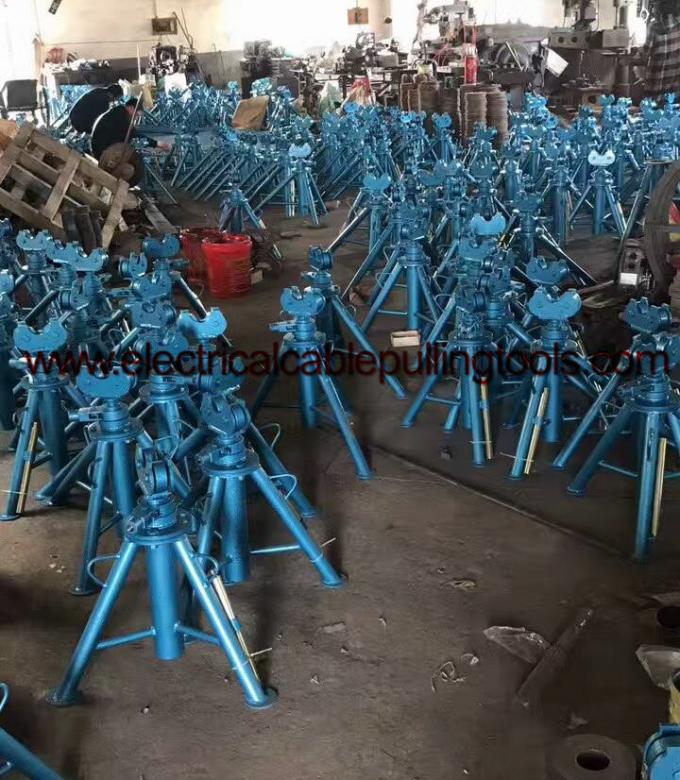

This cable laying equipments screw type wire pay stand we are making three types, one is the colume type one is the farme type, the only different is the stand plate. To suit to the different construction site, you can freely choose the one accordingly. All are stable enough to hold on the drum.



Attached is the 7 ton simple rell pay-out stand cable drum lifting jacks.

we have the 1-5T normal standard cable drum stands, but we can custmozied accordingly for the other specificaitons.



Adjustable screw jack stand is applied to adjusting reel by screw mandrel. Product is used for wire releasing manual.

Explain: Axle is need to buy in additional.
