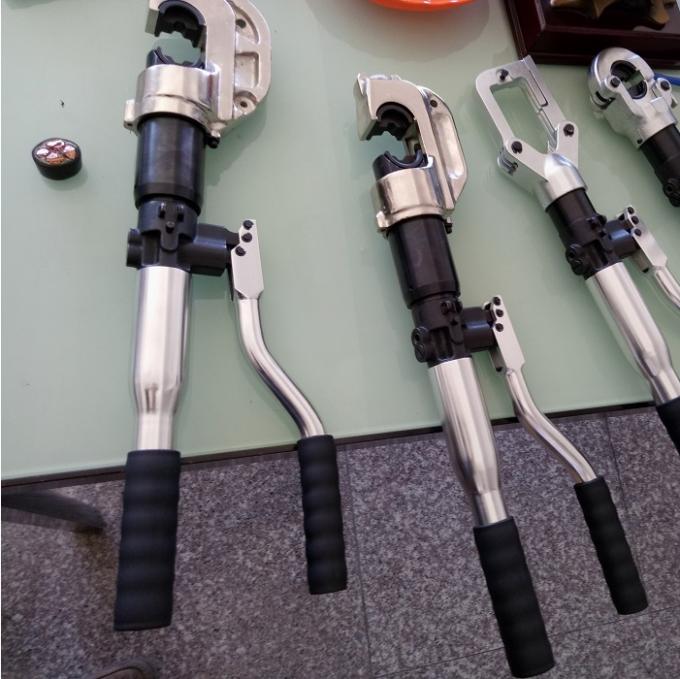

HT-400 Integral Hydraulic Crimping Tool For Crimping 16-400 Mm2 Cable Lug Terminals

HT-400 Integral Hydraulic Crimping Tool For Crimping 16-400 Mm2 Cable Lug Terminals
HT-400 Integral Hydraulic Crimping Tool For Crimping 16-400 Mm2 Cable Lug Terminals HT-400 Integral Hydraulic Crimping Tool For Crimping 16-400 Mm2 Cable Lug Terminals

Large Image :  HT-400 Integral Hydraulic Crimping Tool For Crimping 16-400 Mm2 Cable Lug Terminals

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: HT400
Payment & Shipping Terms:
Minimum Order Quantity: 2sets
Price: get the latest
Packaging Details: plastic packing
Delivery Time: 2-3work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/week
Detailed Product Description
Model: HT-400 Crimping Force: 120KN
Crimping Range: 16-400mm2 Crimping Type: Hexa
Stroke: 32mm Length: 552mm
High Light:

hydraulic cable crimping tool

,

hydraulic wire crimping tool

HT-400 Integral Hydraulic Crimping Pliers Cable Lug Crimping Tools for 16-400 mm2 Crimping



Hydraulic Crimping Tools Type Copper Tube Crimper Tool

Item number

16210 16210A

Model

HT-300 HT-400

Crimping

force

60KN 120KN

Crimping

range

16-300mm² 16-400mm²
Crimping

type

hexagon crimping

hexagon crimping

Dies

50

16,25,35,50,70,95,120,

150,185,240,300mm²

50,70,95,120,150,

185,240,300,400mm²

Stroke

17mm 32mm

Length

approx.460mm approx.552mm

(KG)

Weight

approx.N.W3.7KG

G.W7.1KG

approx.N.W6.8KG

G.W10.2KG

Package

aluminum alloy box aluminum alloy box

Hydraulic hand crimper / cable lug crimping tools/ wire crimper

Characteristics

1. Compression mould can be replaced, quick and safe operation;

2. Compression configuration: 50,70,95,120,150,185,240,300,400mm2

3. Press tools is suitable for DIN.AWG.JIS.

4. There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.

5. It can be operated by one person,it saves time and labor.

6. Pump is connected to the tools, it can turn 180 degree when pressed on the head.
