Lightweight Length Hydraulic Wire Crimper Max Cutting 100mm Armored Cu / Al Cable

Lightweight Length Hydraulic Wire Crimper Max Cutting 100mm Armored Cu / Al Cable
Lightweight Length Hydraulic Wire Crimper Max Cutting 100mm Armored Cu / Al Cable Lightweight Length Hydraulic Wire Crimper Max Cutting 100mm Armored Cu / Al Cable

Large Image :  Lightweight Length Hydraulic Wire Crimper Max Cutting 100mm Armored Cu / Al Cable

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: CPC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: get the latest
Packaging Details: wooden case
Delivery Time: 2-3 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/day
Detailed Product Description
Model: CPC100 Cutting Range: Armored CU/AL Cable 100mm
Packing: Wooden Case Name: Cable Cutter
Length: 620mm Weight: NG 12kg
High Light:

hydraulic cable crimping tool

,

hydraulic crimping tool for electrical cables

CPC Model Split Type Hydraulic Cable Cutter Max Cutting 100mm Armored Cu / Al Cable



80 KN Crimping Force Aluminium Alloy Split Hydraulic Cable Cutter for Cutting

Item number

21449D 21449C 21449 21449A

Model

CPC-85H CPC-100B CPC-130A CPC-160A

(KN)

Crimping

force

80KN 80KN 80KN 80KN
Cutting

range

armored CU/AL

cable Φ85mm max

armored CU/AL

cable Φ100mm max

armored CU/AL

cable Φ130mm max

armored CU/AL

cable Φ160mm max

Stroke

85mm 100mm 130mm 160mm

Length

approx.480mm approx.620mm approx.650mm approx.750mm

(KG)

Weight

approx.N.W6.7KG

G.W9.2KG

approx.N.W12KG

G.W15KG

approx.N.W13.35KG

G.W16.5KG

approx.N.W15.35KG

G.W18.5KG

Package

wooden case wooden case wooden case wooden case

1.Movable style blade for quick replacement.

2.Pin style head for cutting,wire at any position.

3.With good design of whole products.

4.Accurate adjustment before ex works delivery

5.The oil pipe couple fitted with PT3/8"thread.

6.To be worked with pedal pump, manual pump and electric driven hydraulic pump

Lightweight Length Hydraulic Wire Crimper Max Cutting 100mm Armored Cu / Al Cable 0

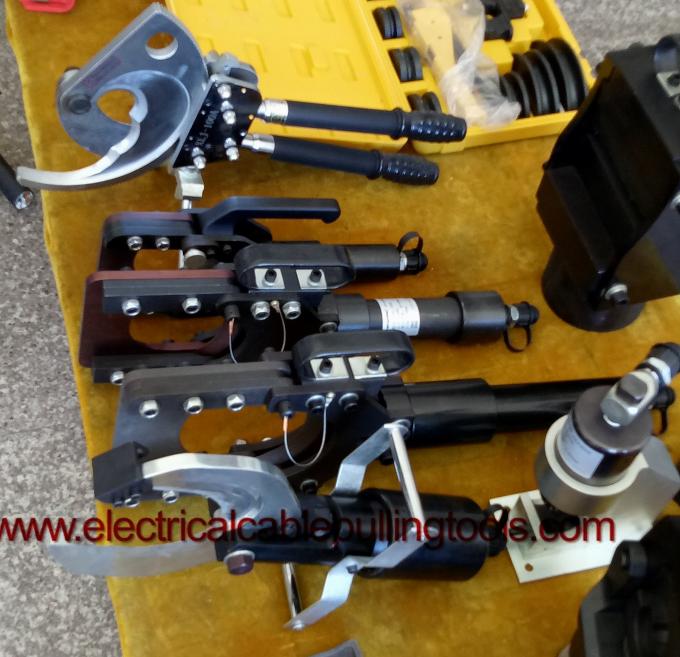

Please click the below photo, and visit on the Yutube Vedio to see the Applicaiton

Lightweight Length Hydraulic Wire Crimper Max Cutting 100mm Armored Cu / Al Cable 1
